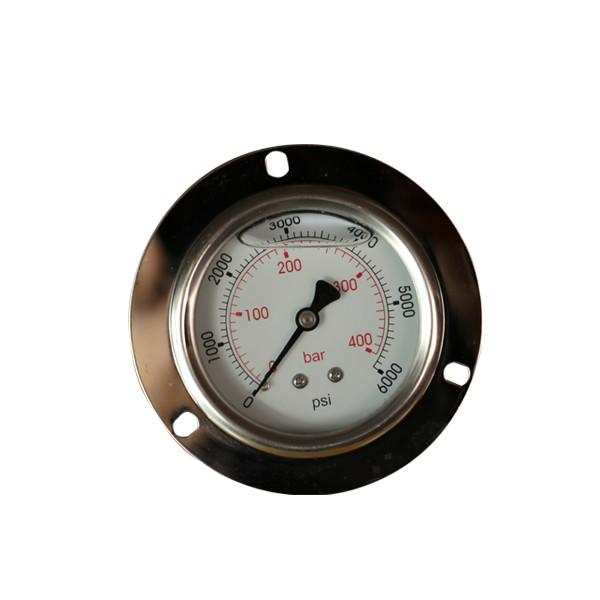

Glycerine filled manometer with Front Flange back connection
The stainless steel glycerine filled pressure gauge . It's widely
used for hydraulic compressors, compressed air system and pneumatic
systems and fluid medium that does not clog connection port or
brass. But it can't be used in corrosive conditions. Steel case
liquid filled gauge is semi-seismic. In normal circumstances, it
itself is protected from the vibration and pulsation.
Stainless steel case liquid filled gauge has two advantages. It is
of high quality and its service life is long. Its price is
competitive. By the way, its good performance relies entirely on
our factory's production process.
Stainless steel case liquid filled gauge has passed ISO9001:2008
certification.
Huazhou Instrument Co., Ltd is a professional manufacturer in
China. Our company can offer OEM business according to clients'
requirements.
| Specification | glycerin filled type with all stainless steel connector |
| Regular Specification | ,2.5",4" |
| Connection Thread | 1.5 ",connector thread 1/8 |
| 2",2.5", connector thread 1/4 |
| 4", connector thread 1/2 |
| Pressure Range | -1-0,0-1000 bar |
Pressure range of compound | -1-24 bar |
| Environmental temperature | -20-60℃ |
| Material | 304 Stainless steel case and crimped ring, polycarbonate window.
Brass copper movement and connector |
| Standard of joint thread | NPT or BSP |
| Liquid filled medium | Glycerin or silicone oil
|
OUR MAIN PRODUCT
Liquid Filled Pressure Gauge
Glycerin Filled Pressure Gauge
Stainless Steel Pressure Gauge
Standard Pressure Gauge
Dry Pressure Gauge
Low Pressure Capsule Gauge
Bimetallic Thermometer
Thermo Manometer
Tyre Pressure Gauge
Welding Pressure Gauge
Gas Test Manometer
Bourdon Tube Pressure Gauge ETC
About US
We are professional pressure gauge manufactory .
Our Production machines
Our factory adopts advanced equipment : Argon arc welding machines
and plasma welding machines. We also have laser printing and
welding machines and Helium spectrometer leakage. These help ensure
stable quality in the HuaZhou Instrument line of pressure and
temperature instruments.
More than 2 experienced engineers
We have experienced engineers developing products and overseeing
quality.
Each month we produce up to 180,000 pressure gauges. Our gauges
range from 1 inch in diameter to 10 inches, and are guaranteed for
1 year. Clients in the US,Canada,Australia, Brazil, France, Spain,
South Africa, Indonesia, Thailand and Vietnam rely on us and you
can too.
