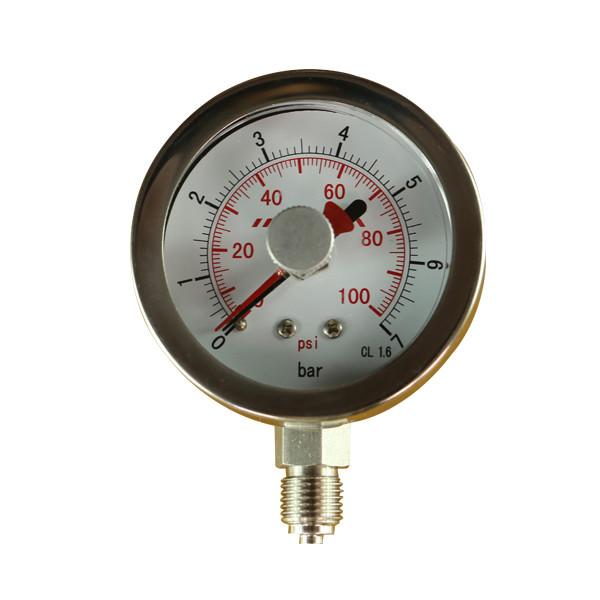

63MM BRASS CONNECTION GLYCERIN FILLED PRESSURE GAUGE WITH RED MARK
ADJUSTABLE POINTER
Normal Size
1"(25mm),1.5"(40mm),2"(50mm)
2.5"(63mm),3"(75mm),4(100mm),6"(150mm).
Bourdon tube
Copper alloy or Stainless steel,<100Bar: C-Type,≥100Bar: Helical
Type Connection stainless steel/brass (customizable)
Case
Stainlesssteel/blacksteel/plastic(customizable) Movement stainless
steel/brass (customizable)
Bezel
Stainlesssteel/blacksteel/plastic(customizable) Dial Aluminum
Pressure Range
-1Bar(-30"Hg)-01000Bar(15000Psi(customizable)
Pointer Aluminum
Thread
1/8",1/4", 3/8",1/2";PT(BSPT,ZG),BSP(G,PF),NPT etc.
| Referance size: | 2.5"(63mm) |
| Option size: | 1.5"(40mm), 2.0"(50mm), |
| 2.5"(63mm), 4.0"(100mm), |
| 4.0"(100mm),6.0"(150mm) |
| Dircetion: | radial |
| Pressure gauge: | 0~16 bar |
| Option pressure: | -1~0 bar to 0~1000bar |
| Accuracy: | ±1.0%,±1.6%,±2.5% |
| Case and bezel: | polished stainless steel |
| Connection: | brass in two pieces |
| Window: | tempered glass |
| Thread: | 1/4"BSP.1/4"NPT etc. |
| Fill: | glycerine or Silicone |
| Gaskets/Filling cap: | Neoprene Or Silica gel |
| Other Option: | with flange,U-clamp or rubber |
OUR MAIN PRODUCT
Liquid Filled Pressure Gauge
Glycerin Filled Pressure Gauge
Stainless Steel Pressure Gauge
Standard Pressure Gauge
Dry Pressure Gauge
Low Pressure Capsule Gauge
Bimetallic Thermometer
Thermo Manometer
Tyre Pressure Gauge
Welding Pressure Gauge
Gas Test Manometer
Bourdon Tube Pressure Gauge ETC
About US
We are professional pressure gauge manufactory .
Our Production machines
Our factory adopts advanced equipment : Argon arc welding machines
and plasma welding machines. We also have laser printing and
welding machines and Helium spectrometer leakage. These help ensure
stable quality in the HuaZhou Instrument line of pressure and
temperature instruments.
More than 2 experienced engineers
We have experienced engineers developing products and overseeing
quality.
Each month we produce up to 180,000 pressure gauges. Our gauges
range from 1 inch in diameter to 10 inches, and are guaranteed for
1 year. Clients in the US,Canada,Australia, Brazil, France, Spain,
South Africa, Indonesia, Thailand and Vietnam rely on us and you
can too.
