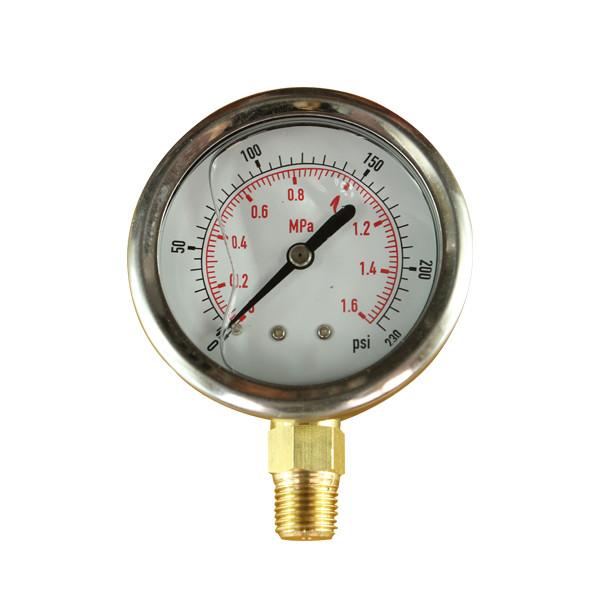

One piece connection /glycerine filled pressure gauge radial
connection
. pressure range: 0 to 1000bar is available
. measuring system and connection: stainless steel
. bottom mount is available
. silicone oil filled
. flange and U clamp is available
. 1/8" 1/4" BSP, PT or NPT connection
. other dial: 1.5", 2", 2.5", 4" and 6"
| Specification | glycerin filled type with all stainless steel connector |
| Regular Specification | 1.5",2",2.5",4" |
| Connection Thread | 1.5 ",connector thread 1/8 |
| 2",2.5", connector thread 1/4 |
| 4", connector thread 1/2 |
| Pressure Range | -1-0,0-400 bar |
Pressure range of compound | -1-24 bar |
| Environmental temperature | -20-60℃ |
| Material | 304 Stainless steel case and crimped ring, polycarbonate window.
Brass copper movement and connector |
| Standard of joint thread | NPT or BSP |
| Liquid filled medium | Glycerin or silicone oil |
The stainless steel glycerine filled pressure gauge . It's widely
used for hydraulic compressors, compressed air system and pneumatic
systems and fluid medium that does not clog connection port or
brass. But it can't be used in corrosive conditions. Steel case
liquid filled gauge is semi-seismic. In normal circumstances, it
itself is protected from the vibration and pulsation.
Stainless steel case liquid filled gauge has two advantages. It is
of high quality and its service life is long. Its price is
competitive. By the way, its good performance relies entirely on
our factory's production process.
Stainless steel case liquid filled gauge has passed ISO9001:2008
certification.
Huazhou Instrument Co., Ltd is a professional manufacturer in
China. Our company can offer OEM business according to clients'
requirements.
