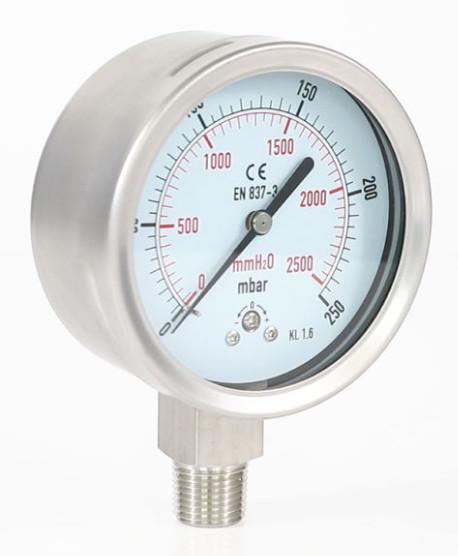

63mm 100mm Low Pressure Air Pressure Gauge Bottom Connection 0-30 Psi

Ask Lasest Price
Brand Name :	HZ
Certification :	ISO9001
Supply Ability :	1000 per month
Delivery Time :	7-45 working days according order's quantity
Price :	Negotiation
Payment Terms :	L/C, T/T

Add to Cart

Product Details
Company Profile

63mm 100mm Low Pressure Air Pressure Gauge Bottom Connection 0-30 Psi

Designation	Capsule low pressure gauge, Standard industrial series, Stainless Steel DIN bayonet ring
Model	1302
Applications	Gaseous and dry media
Nominal size: (mm)	Ø(63 100, 150)
Scale ranges	-600-0, 0-10 to 600mbar
Accuracy class	1.6Ø(100, 150)
Pressure connection	1/2"Ø(100, 150)
Wetted parts	Copper alloy
Case material	Stainless steel case, DIN bayonet ring
Window	Instrument glass
IP class	IP 54
Options/notes	Lower, back entry, stainless steel capsule and connection

OUR MAIN PRODUCT

Liquid Filled Pressure Gauge
Glycerin Filled Pressure Gauge
Stainless Steel Pressure Gauge
Standard Pressure Gauge
Dry Pressure Gauge
Low Pressure Capsule Gauge
Bimetallic Thermometer
Thermo Manometer
Tyre Pressure Gauge
Welding Pressure Gauge
Gas Test Manometer
Bourdon Tube Pressure Gauge ETC

About US
We are professional pressure gauge manufactory .
Our Production machines
Our factory adopts advanced equipment : Argon arc welding machines and plasma welding machines. We also have laser printing and welding machines and Helium spectrometer leakage. These help ensure stable quality in the HuaZhou Instrument line of pressure and temperature instruments.
More than 2 experienced engineers
We have experienced engineers developing products and overseeing quality.
Each month we produce up to 180,000 pressure gauges. Our gauges range from 1 inch in diameter to 10 inches, and are guaranteed for 1 year. Clients in the US,Canada,Australia, Brazil, France, Spain, South Africa, Indonesia, Thailand and Vietnam rely on us and you can too.
